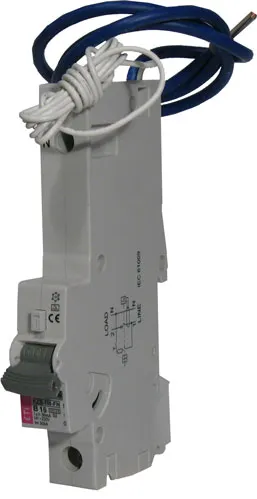

Kombinirano zaščitno stikalo KZS-1M-FN AC C6/0.1 002175531
Specifikacija
- Koda izdelka:
- 002175531
- Opis:
- KZS-1M-FN AC C6/0.1
- Ime razreda:
- Kombinirano zaščitno stikalo
- Nazivni diferenčni tok (A):
- 1A
- Nazivni tok (A):
- 6A
- Izklopna karakteristika:
- C
- Število polov:
- 1+N
- Nazivna kratkostična zmogljivost (kA):
- 10kA
- Nazivni presek:
- 1mm²
- Standardi:
- IEC 61009
Dokumenti
Logistični podatki
Produkt
- Teža izdelka
- 0.195 kg
- Carinska tarifa
- 85362010
- logis_net_width
- 18 mm
- logis_net_height
- 233 mm
- logis_net_depth
- 74 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895628569
- Teža
- 0.19 kg
Transportno pakiranje
- Količina
- 42
- EAN
- 3838895628576
- Teža
- 8.4 kg
- Odpremna količina
- 2184
ETIM klasifikacija
- Klasifikacija
- EC000905
- Ime razreda
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 230V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated current
- 6A
- Rated fault current
- 0,1A
- Leakage current type
- AC
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10kA
- Rated short-circuit breaking capacity according to IEC 60947-2
- 10kA
- Rated short-circuit breaking capacity Icn according to EN 61009-1
- 10kA
- Disconnection characteristic
- Undelayed
- Voltage type
- AC
- Frequency
- Other
- Release characteristic
- C
- Concurrently switching neutral conductor
- Ne
- With interlocking device
- Da
- Ambient temperature during operating
- 30…30°C
- Width in number of modular spacings
- 1
- Anti-nuisance tripping version
- Ne
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 25…25mm²
- Connectable conductor cross section multi-wired
- 1…25mm²
