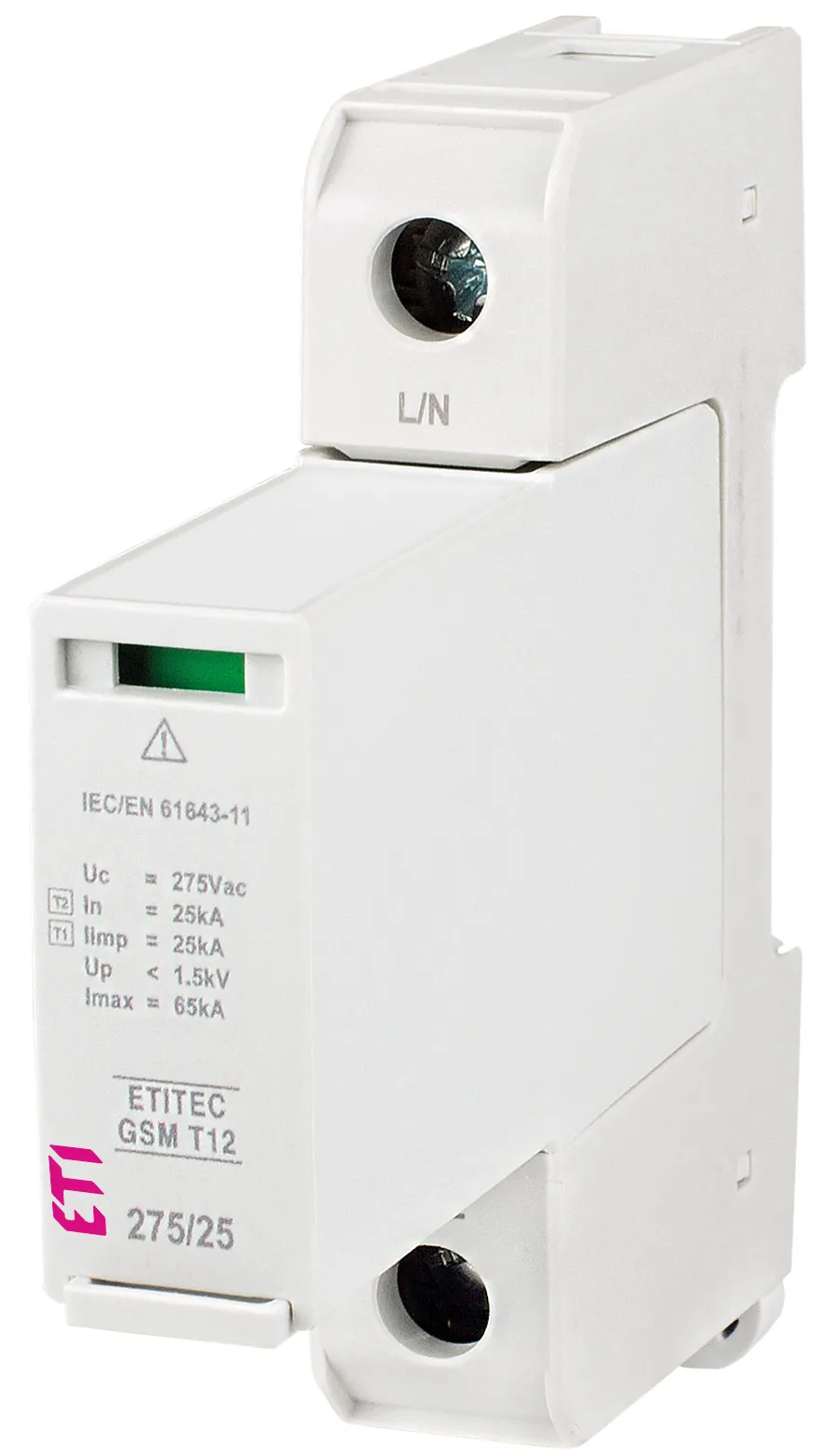

Prenapetostni odvodnik ETITEC GSM T12 275/25 1+0 002440600
Specifikacija
- Koda izdelka:
- 002440600
- Opis:
- ETITEC GSM T12 275/25 1+0
- Ime razreda:
- Prenapetostni odvodnik
- AC max continous operating voltage Uc:
- 275V
- Tip:
- T1, T2
- In (8/20) (kA):
- 25kA
- Up - Stopnja zaščite (kV):
- 1.55kV
- Uhajavi tok:
- NO
- Uporabljena tehnologija:
- GDT
- Daljinska signalizacija:
- Ne
- Sistem omrežja:
- TN
- Število modulov:
- 1
- Built-in depth (mm):
- 86mm
- Funkcija:
- SPD
- Kataloška skupina:
- ETITEC GSM
Dokumenti
Logistični podatki
Produkt
- Teža izdelka
- 0.173 kg
- Carinska tarifa
- 85363090
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895877646
- Teža
- 0.191 kg
Transportno pakiranje
- Količina
- 12
- EAN
- 3838895877653
- Teža
- 2.373 kg
- Odpremna količina
- 2160
ETIM klasifikacija
- Klasifikacija
- EC001457
- Ime razreda
- Combined arrester for power supply systems
- System configuration DC
- Ne
- System configuration IT
- Ne
- System configuration TN
- Da
- System configuration TN-C
- Da
- System configuration TN-S
- Da
- System configuration TT
- Ne
- System configuration other
- Ne
- Number of poles
- 1
- Lightning impulse current (10/350 µs)
- 25
- Max. continuous voltage AC
- 275
- Nominal voltage AC
- 230
- Voltage protection level
- 1,55
- Follow current extinguishing capability
- 50
- Specific energy (W/R)
- 156,2
- Max. conductor cross section solid (solid, stranded)
- 35
- Max. conductor cross section flexible (fine-strand)
- 25
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 1 modular spacing
- Remote signalling
- Ne
- Signalling at the device
- Optical
- Test class
- Type 1 + 2
- Exhausting
- Ne
- Integrated backup fuse
- Ne
- Degree of protection (IP)
- IP20
