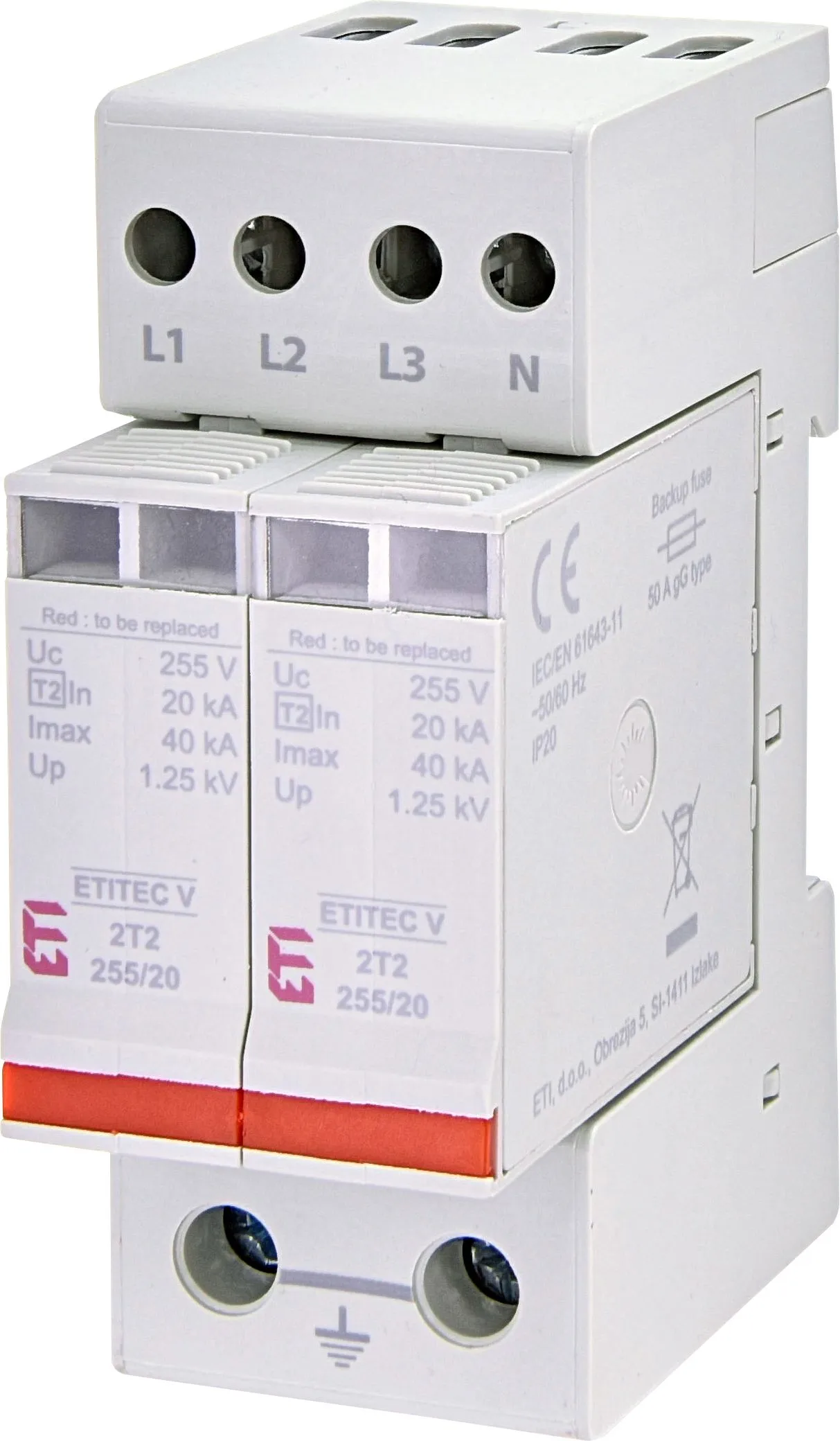

Prenapetostni odvodnik ETITEC V 2T2 255/20 4+0 002442943
Specifikacija
- Koda izdelka:
- 002442943
- Opis:
- ETITEC V 2T2 255/20 4+0
- Ime razreda:
- Prenapetostni odvodnik
- AC max continous operating voltage Uc:
- 255V
- Tip:
- T2
- In (8/20) (kA):
- 20kA
- Up - Stopnja zaščite (kV):
- 1.5kV
- Uhajavi tok:
- JA
- Uporabljena tehnologija:
- MOV
- Daljinska signalizacija:
- Ne
- Sistem omrežja:
- TN-S
- Število modulov:
- 4
- Built-in depth (mm):
- 68mm
- Funkcija:
- SPD
- Kataloška skupina:
- ETITEC V
Dokumenti
Logistični podatki
Produkt
- Teža izdelka
- 0.38 kg
- Carinska tarifa
- 85354000
- logis_net_width
- 36 mm
- logis_net_height
- 95 mm
- logis_net_depth
- 67 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895828778
- Teža
- 0.394 kg
Transportno pakiranje
- Količina
- 48
- EAN
- 3838895828785
- Teža
- 20.932 kg
- Odpremna količina
- 1920
COM_ETISTORE_ITEM_TITLE_LOGISTIC_DATA_SECTION4
- qty
- 4 pcs
- Teža
- 1.68 kg
- Višina (mm)
- 78 mm
- Globina (mm)
- 183 mm
- volume
- 1.499 dm3
ETIM klasifikacija
- Klasifikacija
- EC000941
- Ime razreda
- Surge protection device for power supply systems
- System configuration DC
- Ne
- System configuration IT
- Ne
- System configuration TN-C
- Ne
- System configuration TN-S
- Da
- System configuration TT
- Ne
- System configuration other
- Ne
- Number of conductors (without earthing)
- 4
- Nominal discharge surge current (8/20)
- 20
- Nominal voltage AC
- 230
- Short-circuit breaking capacity (Isccr)
- 10
- Max. continuous voltage AC
- 280
- Max. discharge surge current (8/20)
- 40
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 4 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35
- Max. conductor cross section flexible (fine-strand)
- 25
- With remote signalling contact
- Ne
- Integrated backup fuse
- Ne
- Signalling at the device
- Optical
- Category type 2
- Da
- Degree of protection (IP)
- IP20
