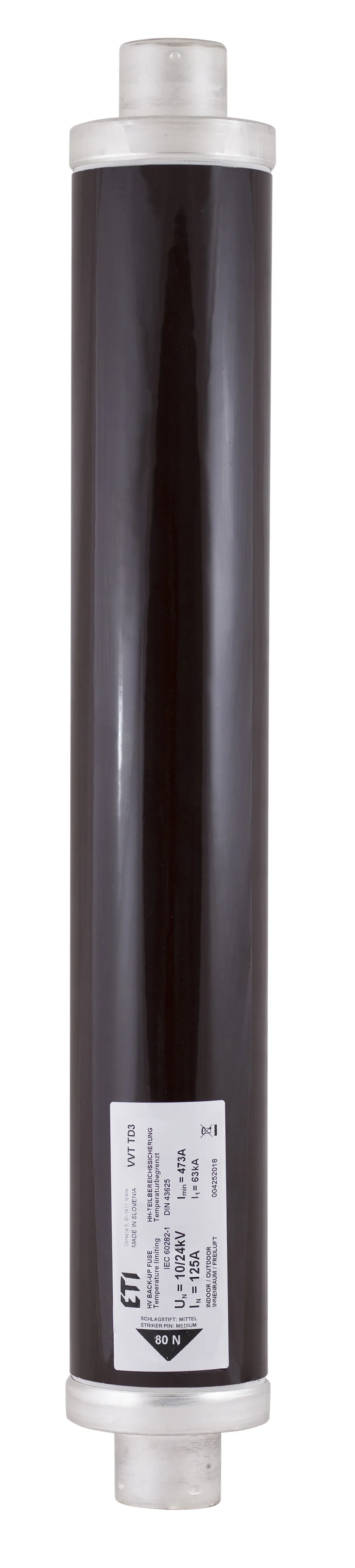

Talilni vložek VVC3 24kV/125A 537 004250518
Specifikacija
- Koda izdelka:
- 004250518
- Opis:
- VVC3 24kV/125A 537
- Ime razreda:
- Talilni vložek
- efuse:
- 1
- fuse type:
- NEW VVC 50N striker
- AC Izklopna zmogljivost (kA):
- 63kA
- Nazivni minimalni odklopni tok (A):
- 473A
- Nazivna AC napetost (V):
- 24000V
- Hladna upornost (mΩ):
- 119mΩ
- Nazivni tok (A):
- 125A
- Izgubna moč (W):
- 365W
- Velikost:
- 537
- Indikator:
- 50N udarna igla
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895918851
- Teža izdelka
- 6.75 kg
- Carinska tarifa
- 85351000
- logis_net_width
- 87 mm
- logis_net_height
- 603 mm
- logis_net_depth
- 87 mm
Transportno pakiranje
- Količina
- 3
- EAN
- 3838895918868
- Teža
- 20.99 kg
- Odpremna količina
- 45
ETIM klasifikacija
- Klasifikacija
- EC003507
- Ime razreda
- Medium-/high voltage fuse
- Rated current
- 125A
- Rated voltage
- 24kV
- Voltage type
- AC
- Rated frequency
- 45…60Hz
- Breaking capacity
- 63kA
- Utilization category
- Other
- Application
- Other
- Length
- 537mm
- Diameter
- 83,5mm
- Performance category according to IEC 60282-1
- Back-up
- With striker
- Da
- Standard
- IEC
- Installation technique
- Air
Karakteristika
