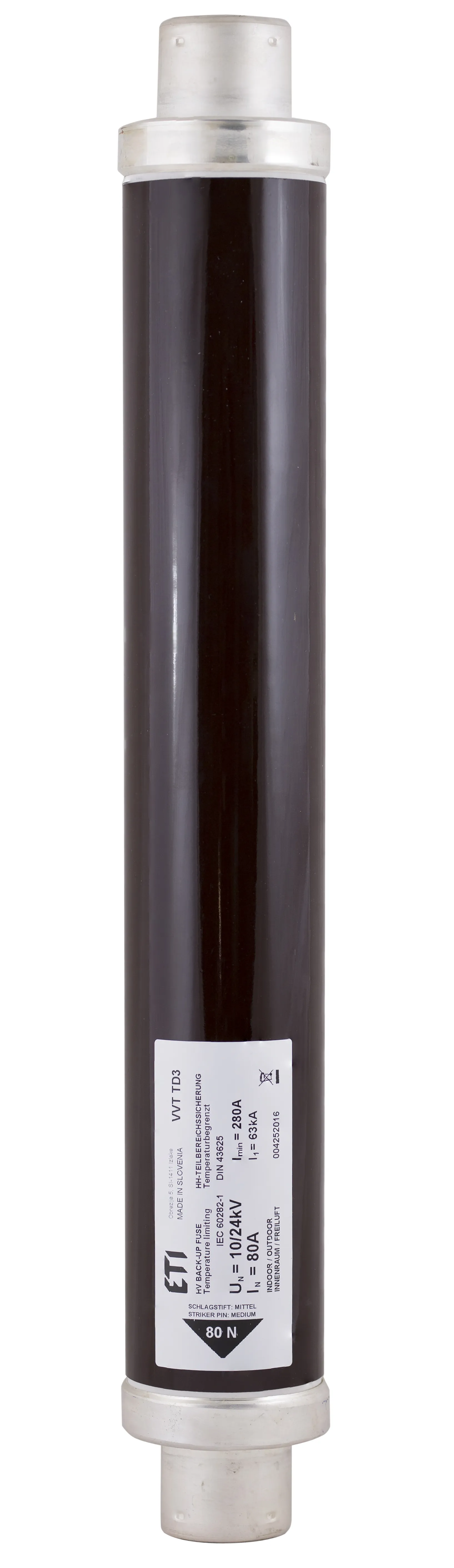

Talilni vložek VVA3 24kV/63A 004251115
Specifikacija
- Koda izdelka:
- 004251115
- Opis:
- VVA3 24kV/63A
- Ime razreda:
- Talilni vložek
- efuse:
- 1
- fuse type:
- NEW VVA without striker
- Velikost:
- 442
- Nazivni minimalni odklopni tok (A):
- 220A
- Nazivna AC napetost (V):
- 24000V
- Nazivni tok (A):
- 63A
- AC Izklopna zmogljivost (kA):
- 63kA
- Izgubna moč (W):
- 137W
- Hladna upornost (mΩ):
- 215mΩ
- Indikator:
- Brez
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895912958
- Teža izdelka
- 4 kg
- Carinska tarifa
- 85351000
- logis_net_width
- 72 mm
- logis_net_height
- 508 mm
- logis_net_depth
- 72 mm
Transportno pakiranje
- Količina
- 3
- EAN
- 3838895912965
- Teža
- 12.66 kg
- Odpremna količina
- 60
ETIM klasifikacija
- Klasifikacija
- EC003507
- Ime razreda
- Medium-/high voltage fuse
- Rated current
- 63A
- Rated voltage
- 24kV
- Voltage type
- AC
- Rated frequency
- 45…60Hz
- Breaking capacity
- 63kA
- Utilization category
- Other
- Application
- Other
- Length
- 442mm
- Diameter
- 68mm
- Performance category according to IEC 60282-1
- Back-up
- With striker
- Ne
- Standard
- IEC
- Installation technique
- Air
Karakteristika
