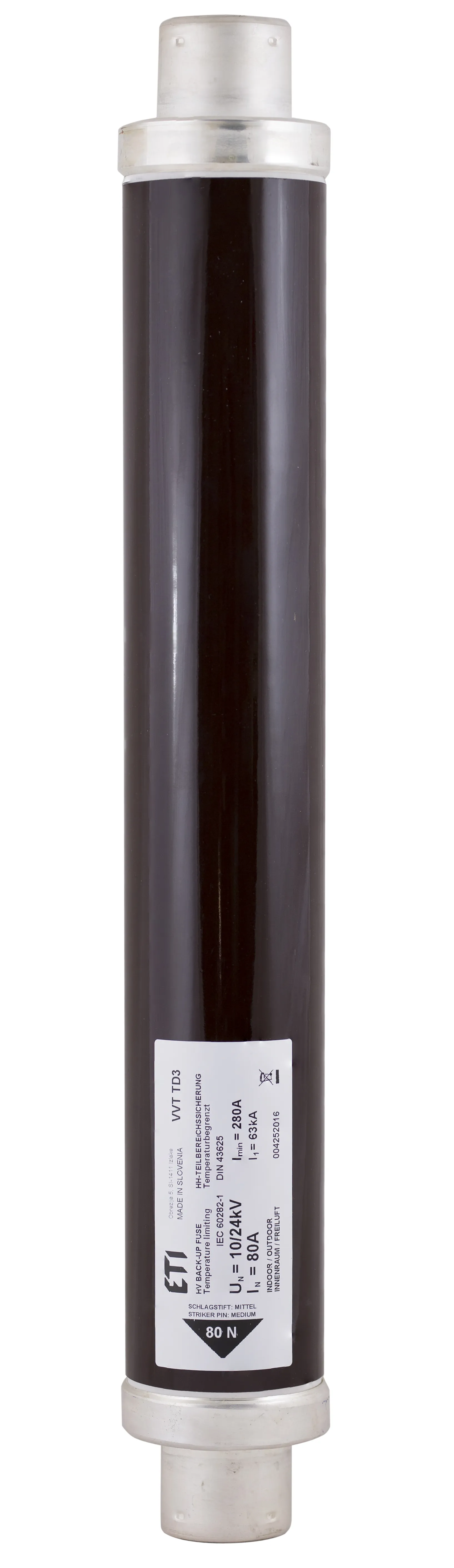

Talilni vložek VVT-D3 24kV/32A 004252012
Specifikacija
- Koda izdelka:
- 004252012
- Opis:
- VVT-D3 24kV/32A
- Ime razreda:
- Talilni vložek
- efuse:
- 1
- fuse type:
- NEW VVT-D 80N Thermo striker
- Velikost:
- 442
- Nazivna AC napetost (V):
- 24000V
- Nazivni tok (A):
- 32A
- AC Izklopna zmogljivost (kA):
- 63kA
- Izgubna moč (W):
- 79W
- Nazivni minimalni odklopni tok (A):
- 110A
- Hladna upornost (mΩ):
- 52mΩ
- Indikator:
- Temperature limiter, 80N striker force
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895895732
- Teža izdelka
- 2.4 kg
- Carinska tarifa
- 85351000
- logis_net_width
- 56 mm
- logis_net_height
- 508 mm
- logis_net_depth
- 56 mm
Transportno pakiranje
- Količina
- 3
- EAN
- 3838895895749
- Teža
- 7.45 kg
- Odpremna količina
- 78
ETIM klasifikacija
- Klasifikacija
- EC003507
- Ime razreda
- Medium-/high voltage fuse
- Rated current
- 32A
- Rated voltage
- 24kV
- Voltage type
- AC
- Rated frequency
- 45…60Hz
- Breaking capacity
- 63kA
- Utilization category
- Other
- Application
- Other
- Length
- 442mm
- Diameter
- 53mm
- Performance category according to IEC 60282-1
- Back-up
- With striker
- Da
- Standard
- IEC
- Installation technique
- Air
