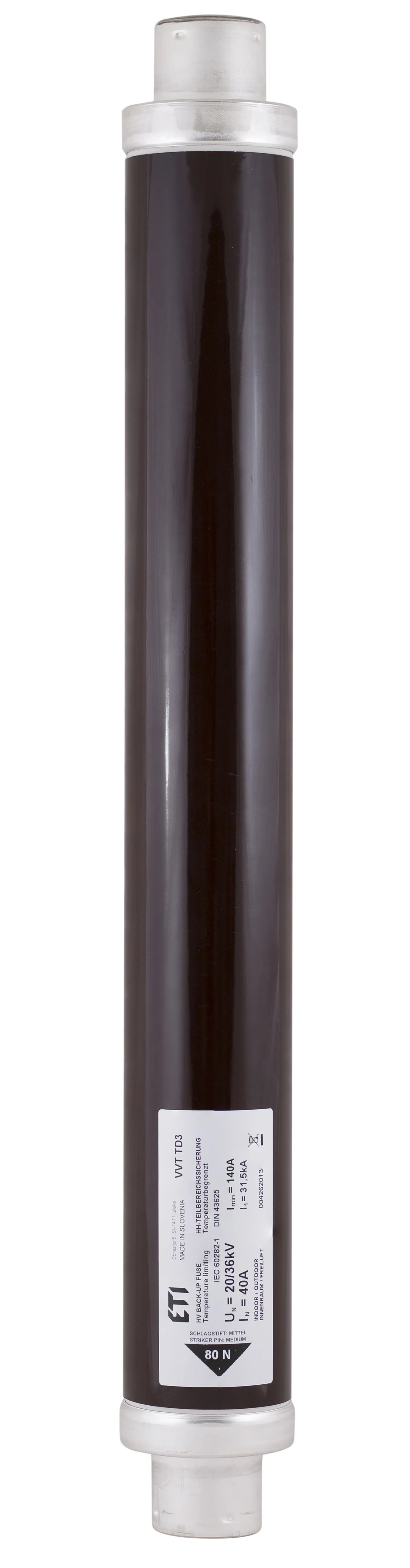

Talilni vložek VVC3 36kV/80A 004260016
Specifikacija
- Koda izdelka:
- 004260016
- Opis:
- VVC3 36kV/80A
- Ime razreda:
- Talilni vložek
- efuse:
- 1
- fuse type:
- NEW VVC 50N striker
- AC Izklopna zmogljivost (kA):
- 315kA
- Nazivni minimalni odklopni tok (A):
- 280A
- Nazivna AC napetost (V):
- 36000V
- Hladna upornost (mΩ):
- 255mΩ
- Nazivni tok (A):
- 80A
- Izgubna moč (W):
- 270W
- Velikost:
- 537
- Indikator:
- 50N udarna igla
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895919155
- Teža izdelka
- 6.75 kg
- Carinska tarifa
- 85351000
- logis_net_width
- 87 mm
- logis_net_height
- 603 mm
- logis_net_depth
- 87 mm
Transportno pakiranje
- Količina
- 3
- EAN
- 3838895919162
- Teža
- 20.99 kg
- Odpremna količina
- 45
ETIM klasifikacija
- Klasifikacija
- EC003507
- Ime razreda
- Medium-/high voltage fuse
- Rated current
- 80A
- Rated voltage
- 36kV
- Voltage type
- AC
- Rated frequency
- 45…60Hz
- Breaking capacity
- 31,5kA
- Utilization category
- Other
- Application
- Other
- Length
- 537mm
- Diameter
- 83,5mm
- Performance category according to IEC 60282-1
- Back-up
- With striker
- Da
- Standard
- IEC
- Installation technique
- Air
Karakteristika
