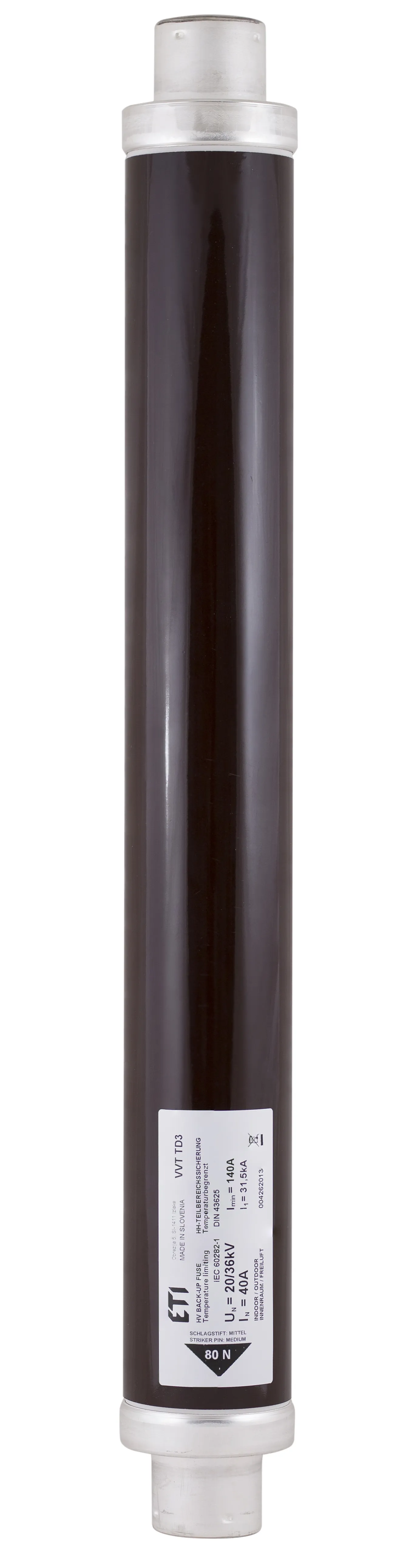

Talilni vložek VVA3 36kV/1A 004261102
Specifikacija
- Koda izdelka:
- 004261102
- Opis:
- VVA3 36kV/1A
- Ime razreda:
- Talilni vložek
- fuse type:
- NEW VVA without striker
- Velikost:
- 537
- Nazivni minimalni odklopni tok (A):
- 12A
- Nazivna AC napetost (V):
- 36000V
- Nazivni tok (A):
- 1A
- AC Izklopna zmogljivost (kA):
- 315kA
- Izgubna moč (W):
- 14W
- Hladna upornost (mΩ):
- 5800mΩ
- Indikator:
- Brez
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895913054
- Teža izdelka
- 2.85 kg
- Carinska tarifa
- 85351000
- logis_net_width
- 56 mm
- logis_net_height
- 603 mm
- logis_net_depth
- 56 mm
Transportno pakiranje
- Količina
- 3
- EAN
- 3838895913061
- Teža
- 9.29 kg
- Odpremna količina
- 54
ETIM klasifikacija
- Klasifikacija
- EC003507
- Ime razreda
- Medium-/high voltage fuse
- Rated current
- 1A
- Rated voltage
- 36kV
- Voltage type
- AC
- Rated frequency
- 45…60Hz
- Breaking capacity
- 31,5kA
- Utilization category
- Other
- Application
- Other
- Length
- 537mm
- Diameter
- 53mm
- Performance category according to IEC 60282-1
- Back-up
- With striker
- Ne
- Standard
- IEC
- Installation technique
- Air
