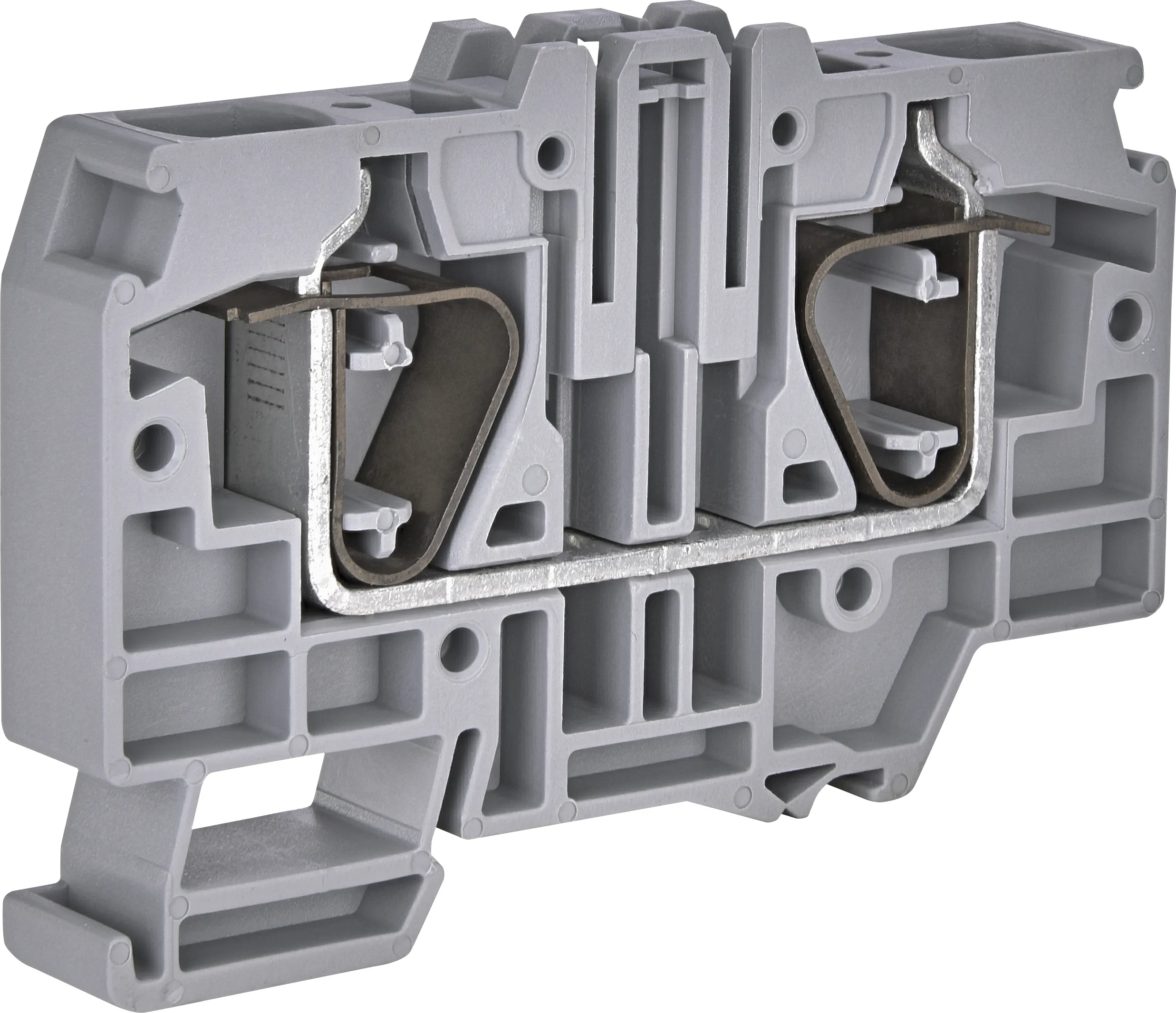

Vrstna sponka ESP-HMM.16 003903135
Specifikacija
- Koda izdelka:
- 003903135
- Opis:
- ESP-HMM.16
- Ime razreda:
- Vrstna sponka
- Stopnja:
- Enojna
- Tip:
- ES Vzmetne vrstne sponke
- Nazivna impulzna vzdržna napetost Uimp (kV):
- 12kV
- Color:
- Siva
- Nazivni presek:
- 16mm2
- Največji tok pri nazivnem preseku vodnika (mm2):
- 76mm²
- Povezovalni mostič:
- YES
- Zaključna ploščica potrebna:
- YES
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895861966
- Teža izdelka
- 38.3 g
- Carinska tarifa
- 85369010
- logis_net_width
- 13 mm
- logis_net_height
- 80 mm
- logis_net_depth
- 50 mm
Transportno pakiranje
- Količina
- 30
- EAN
- 3838895789291
- Teža
- 1.26 kg
- Odpremna količina
- 10560
ETIM klasifikacija
- Klasifikacija
- EC000897
- Ime razreda
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 1.5…25
- Connectable conductor cross section fine-strand with cable end sleeve
- 1.5…16
- Connectable conductor cross section solid-core
- 1.5…25
- Connectable conductor cross section multi-wired
- 1.5…25
- Rated current In
- 76
- Rated voltage
- 1000
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…100
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Da
- Colour
- Grey
- Internally connected stages
- Ne
