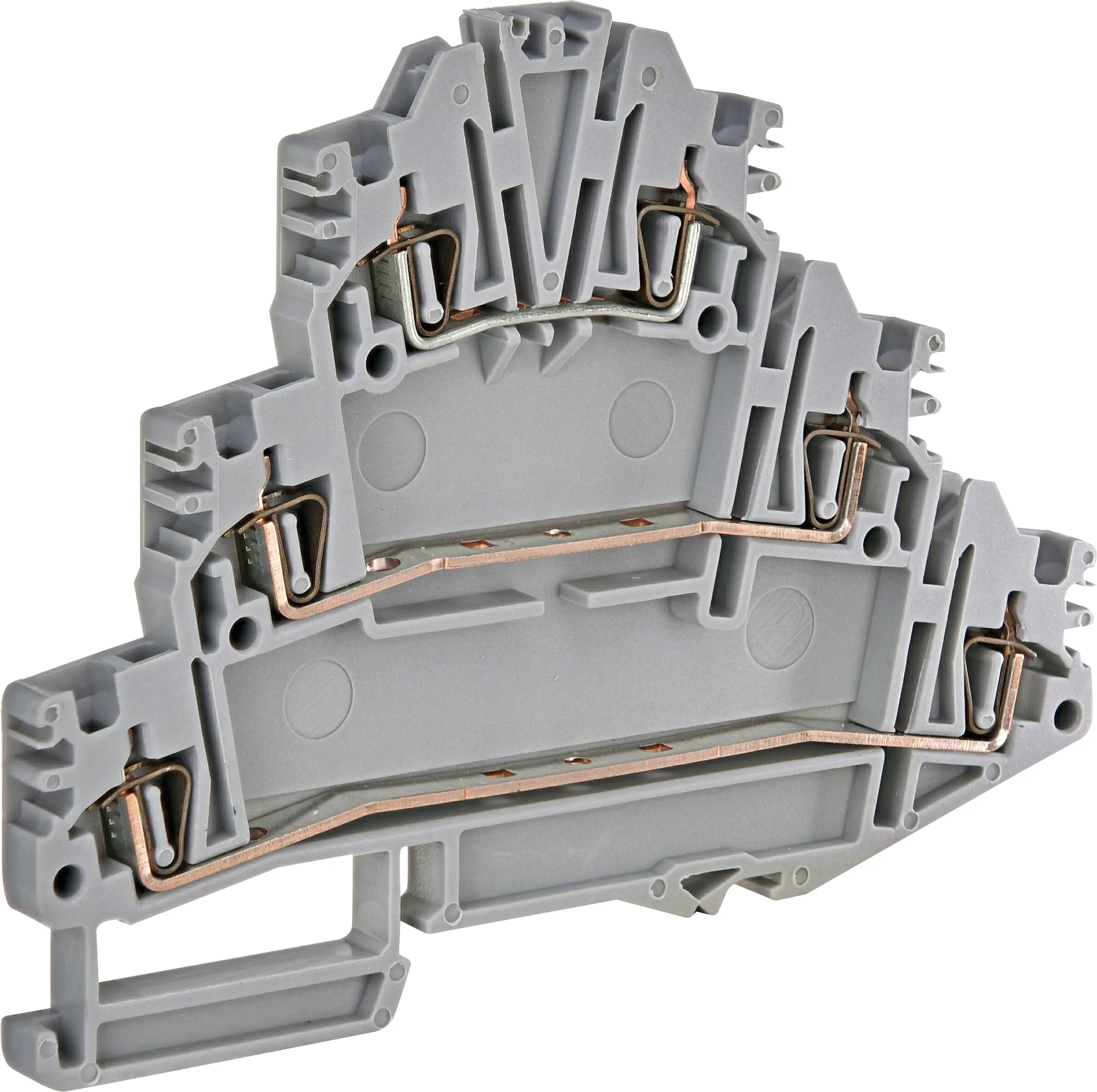

Vrstna sponka ESP3-HLD.2 003903186
Specifikacija
- Koda izdelka:
- 003903186
- Opis:
- ESP3-HLD.2
- Ime razreda:
- Vrstna sponka
- Stopnja:
- Trinadstropna vrstna sponka
- Tip:
- ES Vzmetne vrstne sponke
- Nazivna impulzna vzdržna napetost Uimp (kV):
- 8kV
- Color:
- Siva
- Nazivni presek:
- 2.5mm²
- Največji tok pri nazivnem preseku vodnika (mm2):
- 24mm²
- Presek golega vodnika (mm2):
- 2mm²-25mm²
- Povezovalni mostič:
- YES
- Zaključna ploščica potrebna:
- YES
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895862598
- Teža izdelka
- 19.2 g
- Carinska tarifa
- 85369010
- logis_net_width
- 5 mm
- logis_net_height
- 95 mm
- logis_net_depth
- 74 mm
Transportno pakiranje
- Količina
- 50
- EAN
- 3838895789802
- Teža
- 1.075 kg
- Odpremna količina
- 17600
ETIM klasifikacija
- Klasifikacija
- EC000897
- Ime razreda
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.2…2.5
- Connectable conductor cross section fine-strand with cable end sleeve
- 0.2…1.5
- Connectable conductor cross section solid-core
- 0.2…2.5
- Connectable conductor cross section multi-wired
- 0.2…2.5
- Rated current In
- 24
- Rated voltage
- 500
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 3
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…100
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Da
- Colour
- Grey
- Internally connected stages
- Ne
