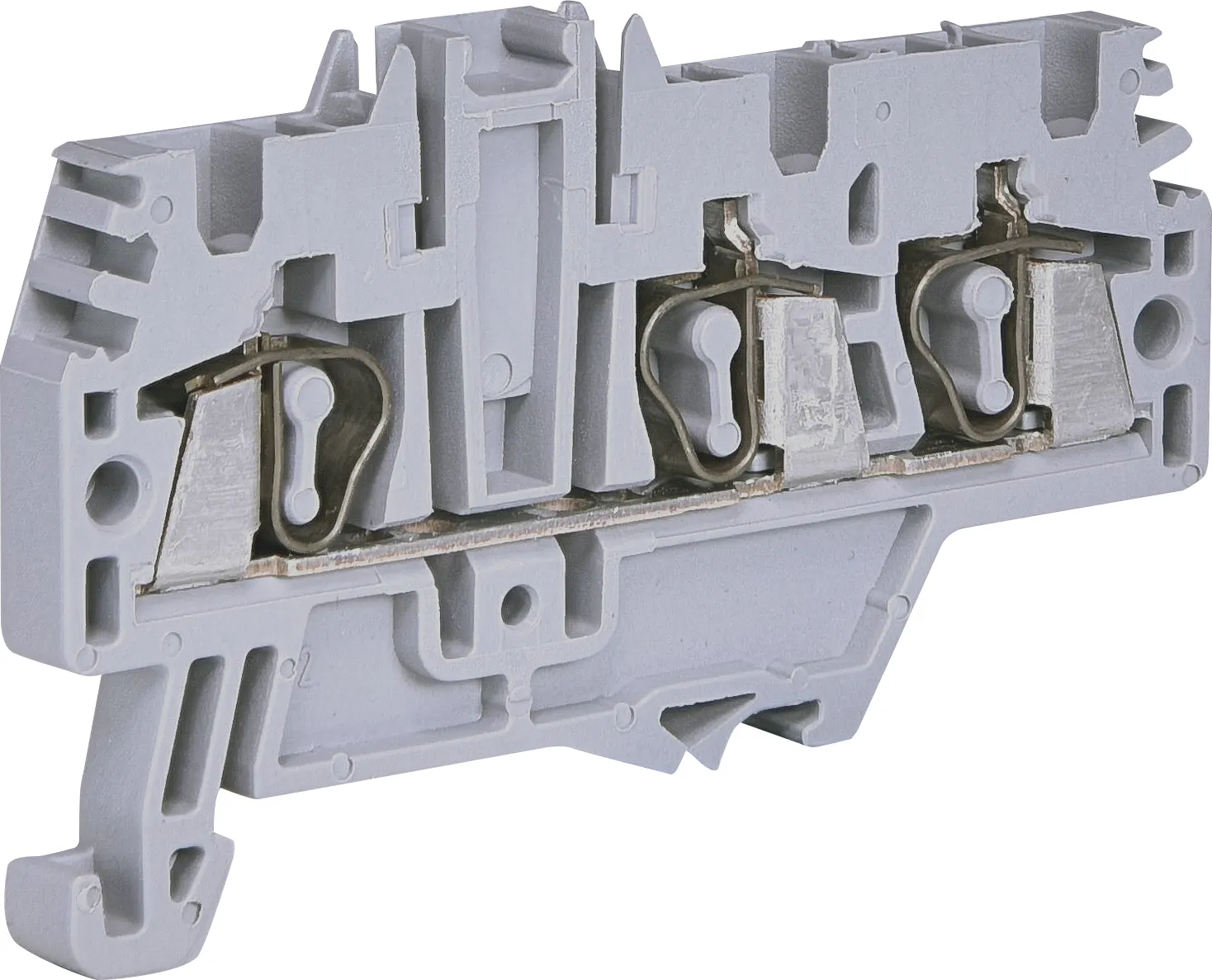

Vrstna sponka ESP-HMM.2/1+2 003903233
Specifikacija
- Koda izdelka:
- 003903233
- Opis:
- ESP-HMM.2/1+2
- Ime razreda:
- Vrstna sponka
- Stopnja:
- Enojna
- Tip:
- ES Vzmetne vrstne sponke
- Nazivna impulzna vzdržna napetost Uimp (kV):
- 8kV
- Color:
- Siva
- Nazivni presek:
- 2mm²
- Največji tok pri nazivnem preseku vodnika (mm2):
- 24mm²
- Presek golega vodnika (mm2):
- 2mm²-4mm²
- Povezovalni mostič:
- YES
- Zaključna ploščica potrebna:
- YES
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895862031
- Teža izdelka
- 0.01 kg
- Carinska tarifa
- 85369010
- logis_net_width
- 5 mm
- logis_net_height
- 66 mm
- logis_net_depth
- 41 mm
Transportno pakiranje
- Količina
- 80
- EAN
- 3838895830832
- Teža
- 0.896 kg
- Odpremna količina
- 26000
ETIM klasifikacija
- Klasifikacija
- EC000897
- Ime razreda
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.2…4
- Connectable conductor cross section fine-strand with cable end sleeve
- 0.2…2.5
- Connectable conductor cross section solid-core
- 0.2…4
- Connectable conductor cross section multi-wired
- 0.2…4
- Rated current In
- 24
- Rated voltage
- 800
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Number of clamp positions per level
- 3
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…100
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Da
- Colour
- Grey
- Internally connected stages
- Ne
