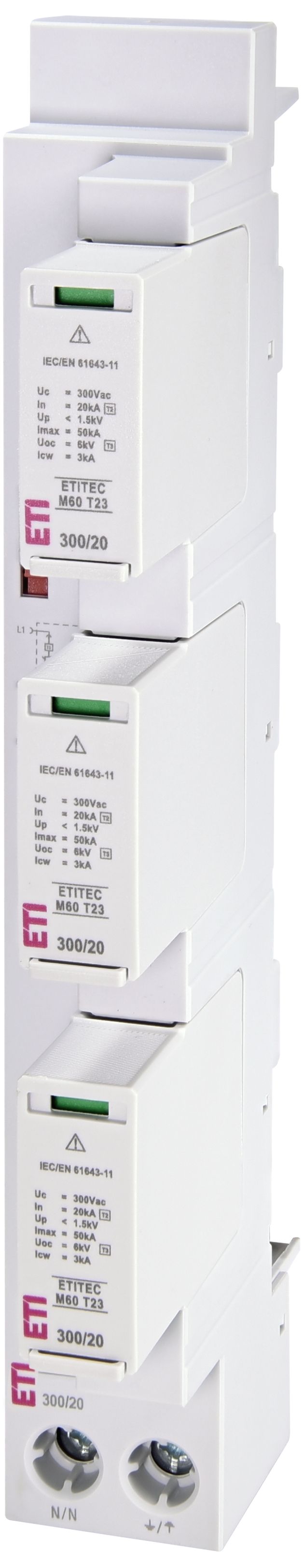

Prenapetostni odvodnik ETITEC M60 T23 300/20 3+1 002440856
Specifikacija
- Koda izdelka:
- 002440856
- Opis:
- ETITEC M60 T23 300/20 3+1
- Ime razreda:
- Prenapetostni odvodnik
- Sistem omrežja:
- TT/TN-S
- AC max continous operating voltage Uc:
- 300
- Funkcija:
- SPD
- Tip:
- T2, T3
- Kataloška skupina:
- ETITEC M60
- Število modulov:
- 4
- Up - Stopnja zaščite (kV):
- 1,5
- Uhajavi tok:
- JA
- Uporabljena tehnologija:
- MOV
- Built-in depth (mm):
- 81
- Imax(8/20) (kA):
- 50
- Daljinska signalizacija:
- Ne
- In (8/20) (kA):
- 20
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85363090
- logis_net_width
- 36 mm
- logis_net_height
- 245 mm
- logis_net_depth
- 109 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838400113269
- Teža
- 0.563 kg
Transportno pakiranje
- Količina
- 20
- EAN
- 3838400113276
- Teža
- 11.881 kg
- Odpremna količina
- 540
ETIM klasifikacija
- Klasifikacija
- EC000941
- Ime razreda
- Surge protection device for power supply systems
- System configuration DC
- Ne
- System configuration IT
- Ne
- System configuration TN-C
- Ne
- System configuration TN-S
- Da
- System configuration TT
- Da
- System configuration other
- Ne
- Number of conductors (without earthing)
- 4
- Nominal discharge surge current (8/20)
- 20
- Nominal voltage AC
- 230
- Short-circuit breaking capacity (Isccr)
- 25
- Max. continuous voltage AC
- 300
- Max. discharge surge current (8/20)
- 50
- Mounting method
- Busbar
- Construction size
- Other
- Voltage protection level
- 1,5
- Max. conductor cross section solid (solid, stranded)
- 35
- Max. conductor cross section flexible (fine-strand)
- 25
- Voltage protection level L-N
- 1,5
- Voltage protection level N-PE
- 1,5
- With remote signalling contact
- Ne
- Integrated backup fuse
- Ne
- Signalling at the device
- Optical
- Category type 2
- Da
- Degree of protection (IP)
- IP20
ETITEC M60 T23 300/20 3+1
