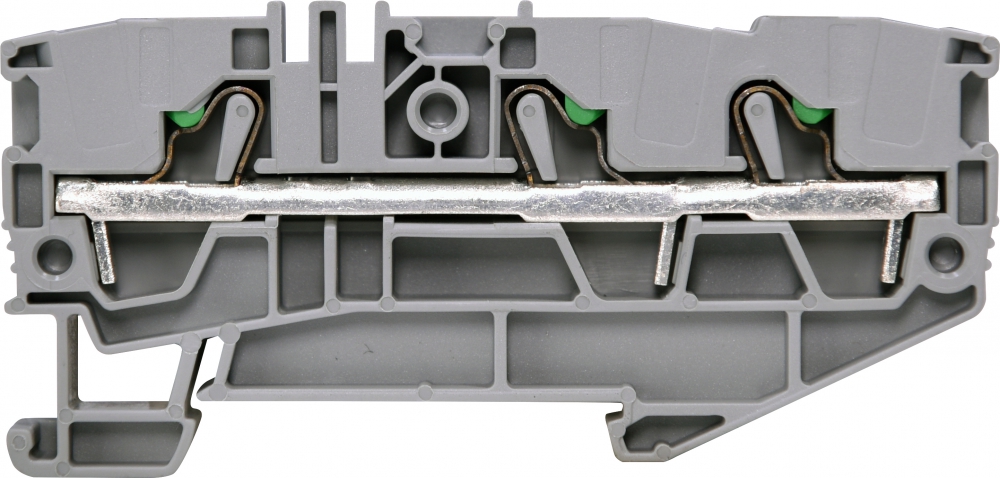

Vrstna sponka ESH-EFC.6/1+2 003903350
Specifikacija
- Koda izdelka:
- 003903350
- Opis:
- ESH-EFC.6/1+2
- Ime razreda:
- Vrstna sponka
- Montaža:
- DIN letev (top hat rail) 35 mm
- Nazivna napetost (V):
- 1000
- Color:
- Siva
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85369010
- logis_net_width
- 16 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 33 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838400117816
- Teža
- 0.021 kg
Transportno pakiranje
- Količina
- 20
- EAN
- 3838400104465
- Teža
- 0.43 kg
- Odpremna količina
- 12680
ETIM klasifikacija
- Klasifikacija
- EC000897
- Ime razreda
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.2…10
- Connectable conductor cross section fine-strand with cable end sleeve
- 6…10
- Connectable conductor cross section solid-core
- 0.2…10
- Connectable conductor cross section multi-wired
- 0.2…10
- Rated current In
- 41
- Rated voltage
- 1000
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Number of clamp positions per level
- 3
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…130
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Da
- Colour
- Grey
- Internally connected stages
- Ne
ESH-EFC.6/1+2
