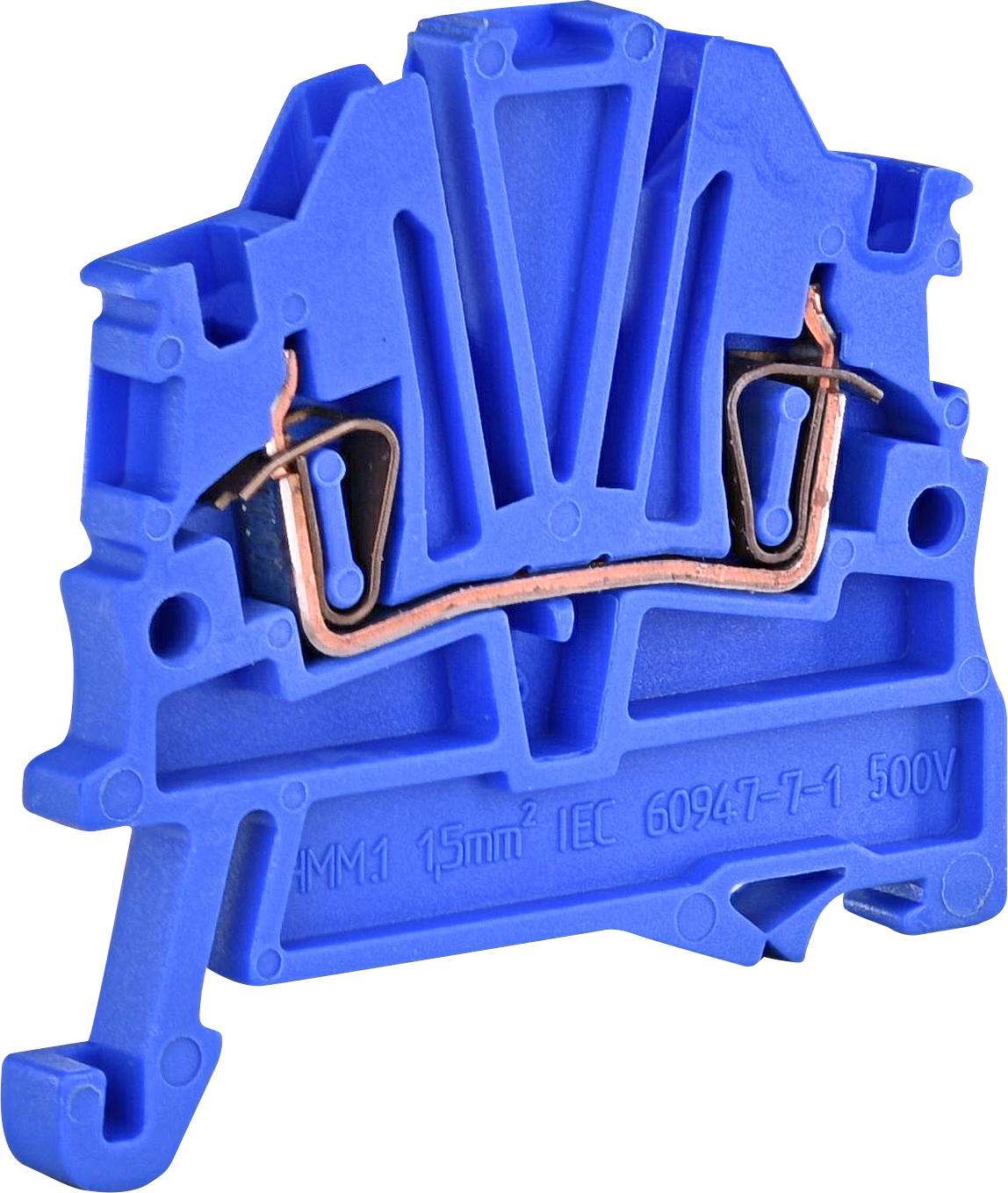

N sponka ESP-HMM.1B 003903166
Specifikacija
- Koda izdelka:
- 003903166
- Opis:
- ESP-HMM.1B
- Ime razreda:
- N sponka
- Montaža:
- DIN letev (top hat rail) 35 mm
- Stopnja:
- Enojna
- Nazivna napetost (V):
- 500
- Tip:
- ES Vzmetne vrstne sponke
- Nazivna impulzna vzdržna napetost Uimp (kV):
- 8 kV
- Color:
- Modra
- Nazivni presek:
- 1
- Največji tok pri nazivnem preseku vodnika (mm2):
- 17,5
- Največji tok pri maksimalnem preseku vodnika (mm2):
- none
- Presek golega vodnika (mm2):
- 0.2 - 4
- Povezovalni mostič:
- YES
- Zaključna ploščica potrebna:
- YES
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895862338
- Teža izdelka
- 0.005 kg
- Carinska tarifa
- 85369010
- logis_net_width
- 4 mm
- logis_net_height
- 45 mm
- logis_net_depth
- 43 mm
Transportno pakiranje
- Količina
- 100
- EAN
- 3838895789604
- Teža
- 0.536 kg
- Odpremna količina
- 88200
ETIM klasifikacija
- Klasifikacija
- EC000897
- Ime razreda
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.2…2.5
- Connectable conductor cross section fine-strand with cable end sleeve
- 0.2…1.5
- Connectable conductor cross section solid-core
- 0.2…2.5
- Connectable conductor cross section multi-wired
- 0.2…2.5
- Rated current In
- 17.5
- Rated voltage
- 500
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…100
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Da
- Colour
- Blue
- Internally connected stages
- Ne
