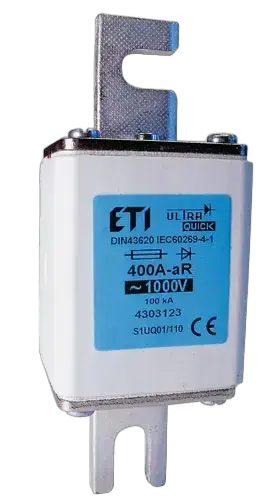

NHS1/110 UQ01 aR 400A/1000V Talilni vložek

Zaloga status Po naročilu

ETI koda:: 004303123
Tip varovalke:: NH-S
Velikost:: NH1
Nazivni tok:: 400 A
Karakteristika:: aR
Indikator:: Indikator stanja zgornjega talilnega vložka
Nazivna AC napetost:: 1000 V
AC Izklopna zmogljivost:: 200 kA
Izgubna moč:: 70 W
Skupni Joulov integral (A2s):: 200.000
Standardi:: IEC 60269-4
Aplikacije:: Za zaščito polprevodniških naprav

Pribor

Produkt

Neto teža izdelka: 620 g
Net width: 51 mm
Net height: 139 mm
Net depth: 51 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895348382
Basic packaging weight: 0,66 kg
Basic Packaging Dimensions Height: 0,139 m
Basic Packaging Dimensions Width: 0,07 m
Basic Packaging Dimensions Depth: 0,052 m
Basic packaging volume: 0,001 m³

Transportna embalaža

Transport packaging quantity: 26 pcs
EAN code for a transport packaging: 3838895559917
Transport packaging weight: 17,51 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 1.352 pcs
Customs tariff: 85361090

Rated switching capacity AC: 200 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH1
Rated voltage AC: 1.000
Power loss at rated current: 70 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 400 A
Utilization category: aR (accompanied semiconductor protection)

ETIM klasifikacija – različica 9.0

Eplan

Programska oprema je zagotovljena takšna, kot je, brez kakršnihkoli jamstev ali garancij. Avtor ni zavezan zagotavljati podpore, storitev, popravkov ali nadgradenj brezplačnim programom ali gonilnikom.

Pribor 1 Ves pribor

004349006
